Data collection display modes for diode array.
All collection modes have a number of ways to display the data so that user can get a clear picture of what is going on and on details of interest. Here are some examples.
![](images/s4-1.gif)

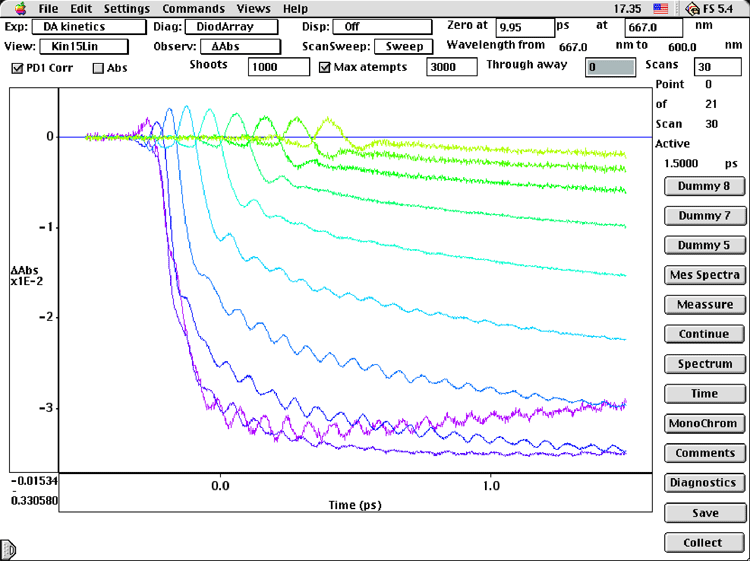

Kinetic traces averaged from 30 sweeps, 150 seconds, including 30 back sweeps.
![](images/s4-2.gif)

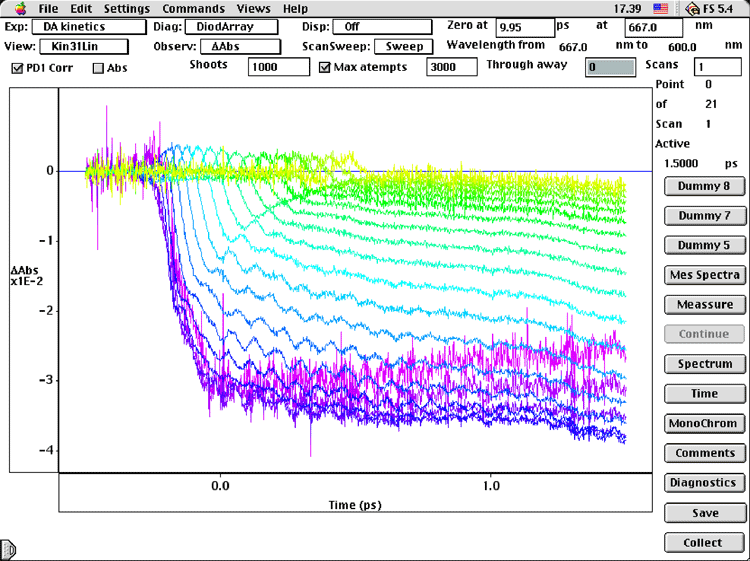

Kinetic traces of a single sweep, 5 seconds accumulation time including the back sweep.
![](images/s4-3.gif)
Kinetic traces averaged form 7 scans in a log plot. 300 x 7 measurements per point.

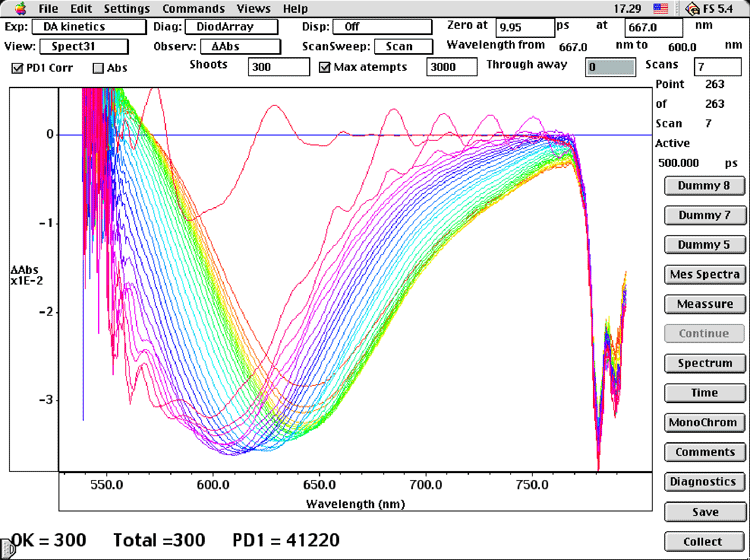

![](images/s4-4.gif)
31 spectra covering from negative time to 500 ps. Scan with logarithmic time steps.
![](images/s4-5.gif)

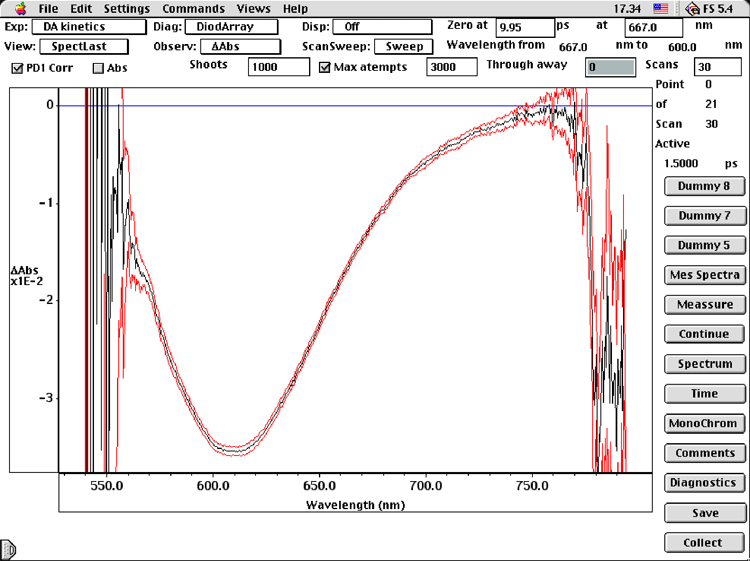

Spectrum with error limits (99% in red).
![](images/s4-6.gif)

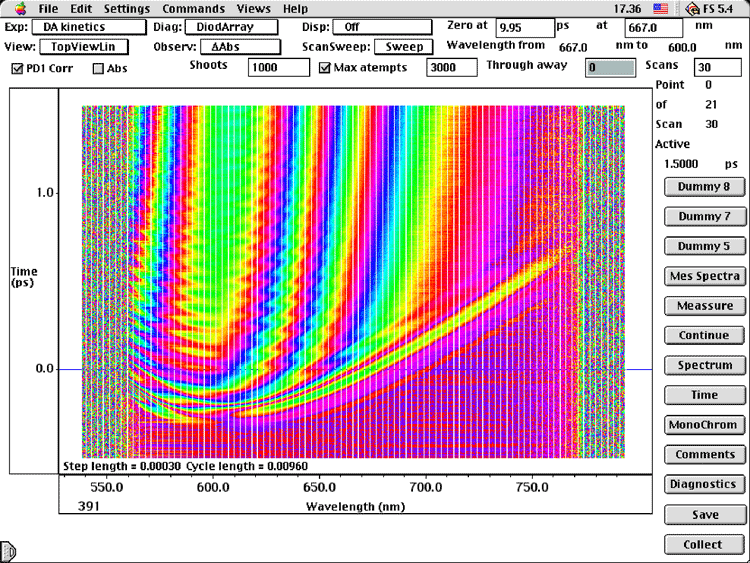

Top view with colour coded amplitudes. One cycle through the spectrum represent 9.6 m∆Abs. Sweep data averaged 30 times. 150 seconds, including 30 back sweeps.
|
